Hydraulic Hose Crimping Machine - MT-51 WS (1/4" - 2")

Rp. 1,000
Last Updated
18 Jun 2024
Country Origin
China
Minimum Order
1 Set

Model Number                                  MT-51 WS

Description :​

Crimping range

6-51 mm (1/4” - 2" inner diameter of hose)

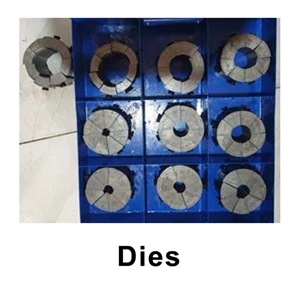

Quantity of dies

10 Set

Item No.of dies

15, 19, 23, 26 Length 60

31,36, 41 Length 70mm

47, 55, 60 Length 80mm

Accuracy

0.01 mm

Output volume of pump

2.5L / 5L / 10L (Optional)

System Preasure

26MPa / 31.5 MPa (Optional)

Motor Power

3 kW - 1 & 3 Phase

Voltage

220V 50/60 Hz (Optional)

Crimping Force

 500 T

Work Efficiency

200 pcs/h

Maximum Open Diameter

114 mm

The Max Open Tolerance

-+ 30 mm

Machine Dimension

730" 480" 740" mm

Package Dimension

800" 530" 870" mm

Net Weight

245kg

Gross Weight

260 kg

Operate Type

Sem-Automatic

Link Website : www.jayamajumandiri.com

Info Sales : 0812-8793-7757



Lihat Selengkapnya

Untuk keterangan lebih lanjut, silahkan download PDF ini :
